Lectrotab Standard Stainless Steel Trim Tab Kits with Rocker Switch
Lectrotab Standard Stainless Steel Trim Tab Kits with Rocker Switch

Lectrotab Trim Tab Kit, 12 V / 8 Sec. Part No XKAF9X9 - Canada - Canadian Dollars

review
0
0
5
Your Price: C$571.00
Retail Price:C$996.00
You Save:C$425.00(43%)
Part Number:XKAF9X9

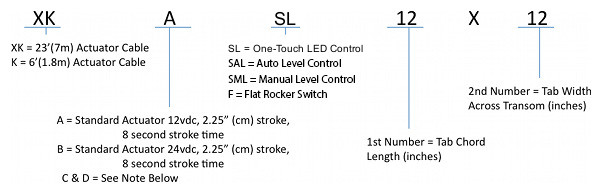

Lectrotab Trim Tab Part Number: XKAF9X9 Trim Tab Kit, 12 V / 8 Sec. Dual Flat Rocker Switches "X" KITS WITH LONG WIRE ACTUATORS - NO INTERCONNECT CABLE

Stainless Steel Trim Tabs

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding. The tabs are made of corrosion resistant 12 gauge, 304 stainless steel and are available in standard finish (as shown), mirror finished stainless steel, or black powder coated stainless steel. Standard tabs are available in 9" (23cm) and 12" (30cm) chord lengths (chord is the length from the transom to the tab trailing edge) and in widths between 9" (23cm) and 48" (122cm). See specification chart for dimensional details. All tabs exceeding a 24" (61cm) width feature a 90 degree bent up trailing edge for additional strength. Edges can be turned up or down, made straight or tapered, and reinforced in any way. For galvanic protection, pre-installed zinc anodes are also available.

Kit Contains these Parts
2 - Actuators with 23' (7m) cable
2 - Flat Stainless Steel Tabs, 12 Gauge

Note:
Actuators are also available with a 4 second stroke time. 4 second stroke time model numbers begin with the letter "C" for 12vdc and "D" for 24vdc.
Please note that Lectrotab recommends using the 8 second stroke time for a smoother, more controlled boat response to tab adjustments.
